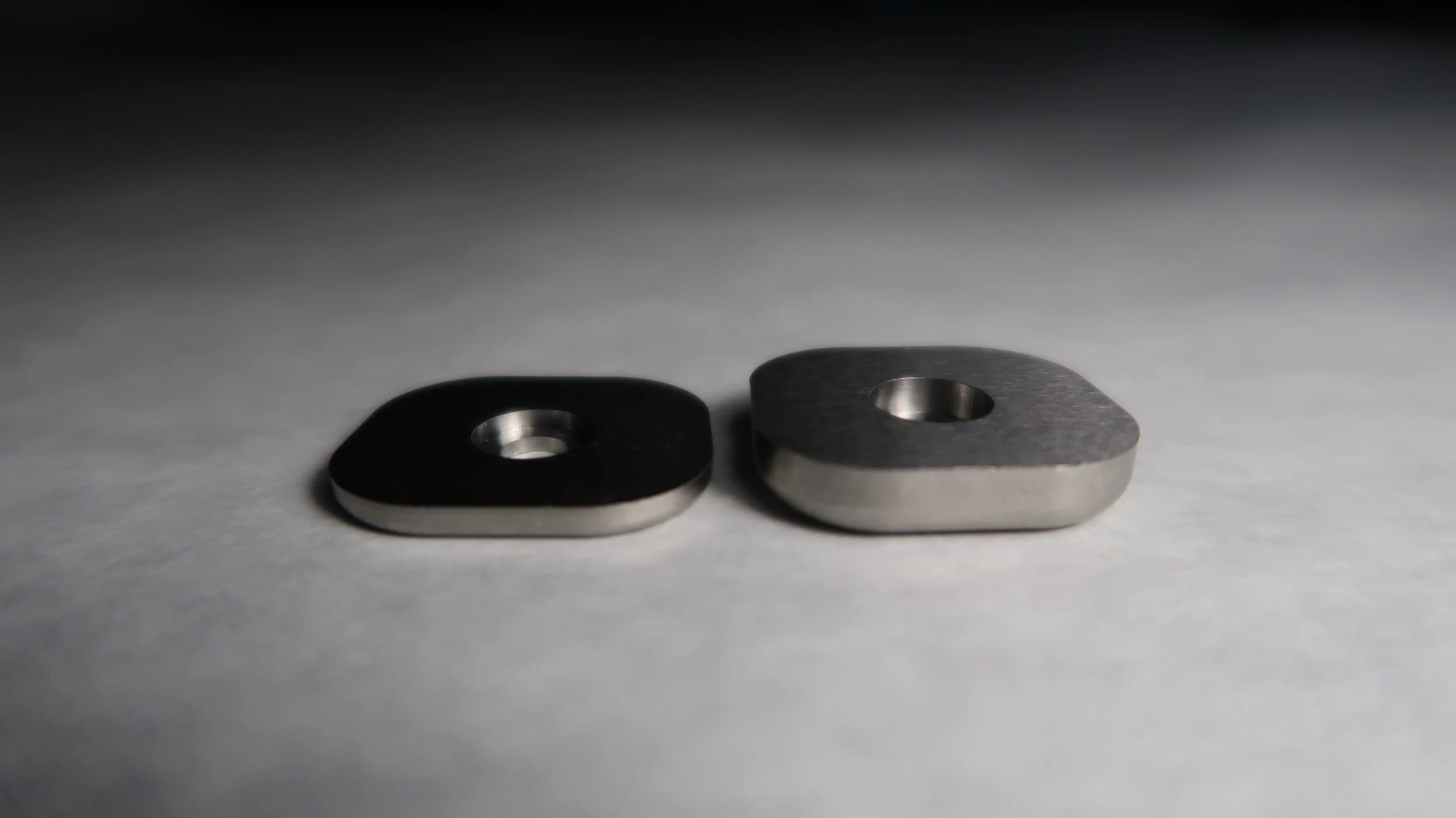

Stackable weights allows for riser weight customization enabling you to fine tune your setup.

• 1oz and 2oz weight seamlessly installs inside limb pocket between tiller bolt and dovetail block

• Made out of tungsten

• Designed to fit Hoyt GMX 3, Hoyt Formula XD, and Hoyt Xceed (See Below For More Details)

• Bolts sold separately

• Frames sold separately

///////////////////////////////////////////////////////////////////////////////////////////////

GMX 3

Each Limb Pocket of the GMX 3 can support up to 5oz of tungsten riser pocket weights

You can use the stock screws that come with the GMX 3. They will work up to 4oz per pocket.

• #10-24 x 3/8" Socket Head Cap (needed for 1oz to 2oz of weight in one pocket. Hoyt only supplies one)

• #10-24 x 1/2" Socket Head Cap (needed for 3oz to 4oz of weight in both pockets. Hoyt only supplies one)

• #10-24 x 3/4" Button Head (needed for 5oz of weight in one pocket)

///////////////////////////////////////////////////////////////////////////////////////////////

Formula XD

Each Limb Pocket of the XD can support up to 5oz of tungsten (6oz can work BUT you may have a clearance issue with limb, try at YOUR OWN RISK)

You can use the stock screws that come with the XD. They will work up to 4oz per pocket.

• #10-24 x 3/8" Socket Head Cap (needed for 1oz to 2oz of weight in one pocket. Hoyt only supplies one)

• #10-24 x 1/2" Socket Head Cap (needed for 3oz to 4oz of weight in both pockets. Hoyt only supplies one)

• #10-24 x 3/4" Button Head (needed for 5oz of weight in one pocket)

///////////////////////////////////////////////////////////////////////////////////////////////

Xceed

Each Limb Pocket can support up to 7oz of tungsten (8oz can work BUT you may have a clearance issue with limb, do at your own risk). You will also need to add Weight Frames to your order to make the weights work.

You can use the stock screw that came with the Xceed 2.5oz weight. It will work up to 4oz per pocket. To reach 5oz or 6oz you need to use a #10-24 x 3/4" Button Head to you order. To reach 7oz you need #10-24 x 1" Button Head. Now if you wish to use only 1oz or 2oz you will need to use a #10-24 x 3/8" Socket Head Cap.

• #10-24 x 3/8" Socket Head Cap (needed for 1oz to 2oz of weight in both pockets)

• #10-24 x 1/2" Socket Head Cap (needed for 3oz to 4oz of weight in both pockets. Hoyt only supplies one)

• #10-24 x 3/4" Button Head (needed for 5oz to 6oz of weight in one pocket)

• #10-24 x 1" Button Head (needed for 7oz of weight in one pocket)

*These screws can be purchased at you local hardware store

Weight Frames are necessary to use Tungsten Riser Pocket Weights on your Hoyt Xceed. They come in two size

• Weight Frame S (Fits 1oz Weight)

• Weight Frame L (Fits 2oz Weight)

*Weight Frame S is ONLY for 1oz Tungsten Riser Pocket Weights

*Weight Frame L is ONLY for 2oz Tungsten Riser Pocket Weights
