Shore Shot 4mm Tungsten Points for Easton X10™ 4mm Parallel Pro, Gold Tip Pierce Tour, and Black Eagle X Impact
Shore Shot 4mm Tungsten Points for Easton X10™ 4mm Parallel Pro, Gold Tip Pierce Tour, and Black Eagle X Impact

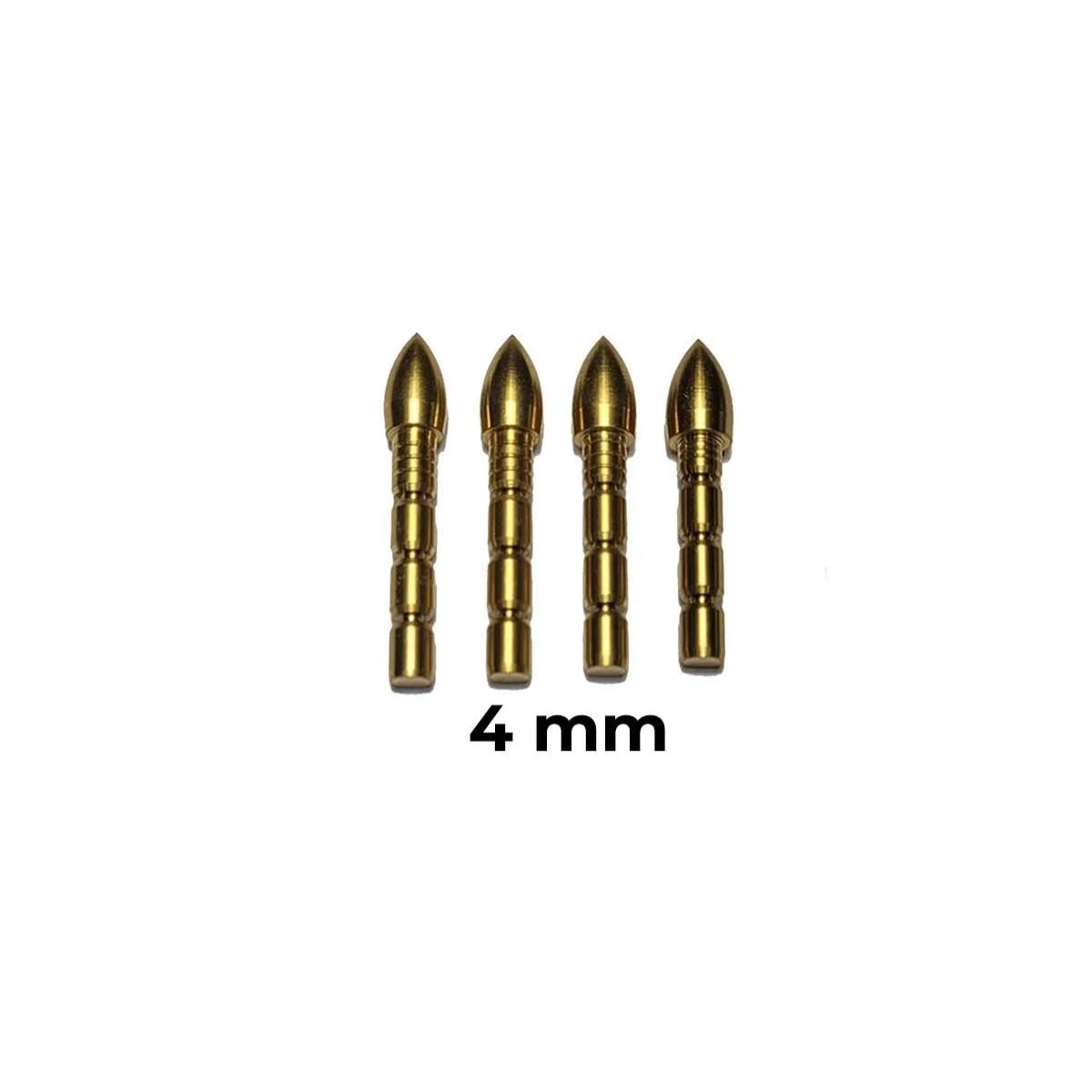

4mm Tungsten Points by Shore Shot Archery are designed to increase the tunability and customization of your 4mm arrows by offering four point weight sizes. This starts with the full 140 grain point. Then breaking off one break-off gives you a 120 grain point. Followed by breaking two break-offs off giving you 100 grain and finally breaking 3 break-offs off giving you a solid 80 grain point. By having tungsten 4mm points it allows the archer to drastically cut down the amount of shank in your arrow shaft. You can see this difference in the photo gallery where a #1 Tungsten point is next to a Stainless Steel #1 point. Reducing the shank will in turn improve the tuneability of your arrow.
Points Fit - Easton X10™ 4mm Parallel Pro
Shore Shot Archery’s Take on Tungsten Points
Each point is individually weighed and packaged
Tungsten break-off points for most shafts that accept 4mm points (see list below)
80 to 140 grain break-offs (20 grain increments)
Titanium plating
Glue Cutout Below Head of Point For Better Fitment Into Arrow Shaft
Grooves For Better Glue Adhesion
Sold as a 12 pack
Weight tolerance: ± 0.5 grains (Matched Per Dozen ± 0.3)
97% Tungsten
Color: Gold
NOTE: If you break these points down to their 80 grain configuration is it highly recommended you generously glue the points to keep them in place. The grooves under the head of the point will help catch glue and hold the point in the arrow shaft. Alternatively you can permanently epoxy them in.
Shore Shot Archery 4mm Points measurements and recommendations
#4 O.D. .231" to .245”
#3 O.D. .224” to .227”
#2 O.D. .213” to .220”
#1 O.D. .208” to .209”
If the O.D. of your shaft is between two sizes (ex .229”) then pick the larger point size (ex #4). It is better to have the point overhang the shaft then the shaft overhang the point.
Easton Shafts
( Please Compare With O.D. Measurement Above)
250-340 spine use #4
380-420 spine use #3
470-710 spine use #2
810-1150 spine use #1
370-720 spine use #2
780-1000 spine use #1
1100-1400 spine use #1
A/C/G
480-430 spine use #3
660-540 spine use #2
1500-660 spine use #1
340-400 spine use #4
450-500 spine use #3
550-810 spine use #2
900-2000 spine use #1
Carbon One
500-410 spine use #3
810-550 spine use #2
2000-900 spine use #1
Apollo
670-560 spine use #3
950-740 spine use #2
2000-1200 spine use #1
Superdrive Micro Shafts
375-325 spine use #4
525-425 spine use #3
950-575 spine use #2
Shore Shot Archery 4mm Points measurements and recommendations
#4 O.D. .231" to .245”
#3 O.D. .224” to .227”
#2 O.D. .213” to .220”
#1 O.D. .208” to .209”
Victory Archery Shafts
( Please Compare With O.D. Measurement Above)
VAP
600-500 spine #2
450-400 spine #3
350-250 spine #4
200 spine #4 (please note this spine has an O.D. of .252 the O.D. of #4 is .245 the shaft will stick out beyond the point and this is not recommended. Proceed at your own risk)
VAP TKO
500-300 spine #4
235-175 spine #4 (please note this spine has an O.D. of .252 to .265 the O.D. of #4 is .245 the shaft will stick out beyond the point and this is not recommended. Proceed at your own risk)
Shore Shot Archery 4mm Points measurements and recommendations
#4 O.D. .231" to .245”
#3 O.D. .224” to .227”
#2 O.D. .213” to .220”
#1 O.D. .208” to .209”
Gold Tip Shafts
( Please Compare With O.D. Measurement Above)
Pierce Tour
700-600 spine use #2
500 spine #3
400-250 spine #4
Shore Shot Archery 4mm Points measurements and recommendations
#4 O.D. .231" to .245”
#3 O.D. .224” to .227”
#2 O.D. .213” to .220”
#1 O.D. .208” to .209”
Black Eagle Shafts
( Please Compare With O.D. Measurement Above)
X-Impact
200 spine (Shaft O.D. too big use #4 at your own risk)
250-350 spine use #3
400-600 spine use #2
Shore Shot Archery 4mm Points measurements and recommendations
#4 O.D. .231" to .245”
#3 O.D. .224” to .227”
#2 O.D. .213” to .220”
#1 O.D. .208” to .209”
Altra Shafts
Phantom 166 Premier
250 -300 (I need measurements)
350-400 (I need measurements)
400-500 spine use #2 ( 500 spine definitely fits its OD is ~.218”)
( Please Compare With O.D. Measurement Above)
*Reminder, EU customers will be responsible for paying VAT on pickup.
*Purchases outside of the United States may be subject to local taxes on delivery or additional shipping costs
Recommended Point Installation Method
(Tool Required: A butane or propane torch with small flame, pliers, cleaning materials noted below, and recommended hot melt (CDM Flitemate Hot Melt or Shop Stick)
Cut arrow shaft on high speed arrow saw and deburr the inside of shaft, removing no more then 1/4” of aluminum shaft wall
Clean the inside of the shaft (about 2” in) with 91% isopropyl alcohol
Heat hot melt in a gas flame and apply a ring of hot melt around and inside the open end of the shaft (Never Apply Heat Or Flame To The Shaft)
With your small set of pliers, grasp the point and coat the shank end of the point with hot melt that was headed by your hot flame (get hot melt soft not liquid)
Hold the point in your piers with the hot melt applied into the flame again, this time let it liquefy (MAX 3-4 Seconds Do Not Overheat the Point) Serious damage to the shaft or point could occur
Put point into shaft with a twisting motion. Quickly reheat THE POINT ONLY IF NEEDED to get in fully into the shaft. Whip excess glue with a paper towel
Stand the shaft on the point end making sure the point is completely seated in the shaft and allow it to cool before touching our shooting, DO NOT use water to cool the shaft and point
